• 6 YEARS WARRANTY
  • NEW 2024
  • 40 ELITE RTK
  • 40 ELITE RTK

Ambrogio 4.0 Elite RTK with cloud navigation RTK is the ideal robot for large areas with uneven terrain and need precise cutting of grass to the centimeter.

Thanks to the RTK system, to the new grass and ZCS ultradound sensors, the robot can work on spaces up to 5,500 square meters, ensuring a uniform and precise cut even near the perimeter of the area, also without signal.

The standard ZCS Connect ensures that the robot can be monitored anytime and anywhere via the Ambrogio Remote APP.

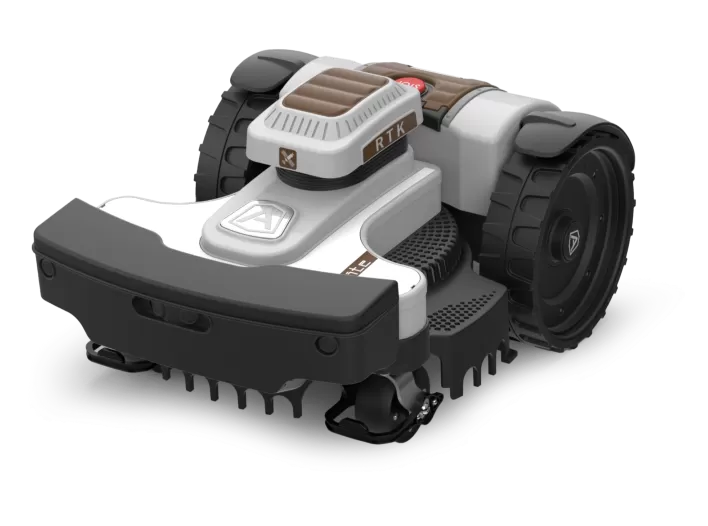

Ambrogio 4.0 Elite RTK

Flexible, versatile and super technological.

Working area

5500 m2

Perimeter wire

No

Slope

45%

Charge

Automatic - Contact

Connection

Bluetooth-GSM

Cutting Height Adjustment

Motorized

Sensore baratro web

Drop Off Sensor

Snodo web

Central Joint

Radar web

Obstacles Detection

Rtk web

Advanced RTK Navigation

Riconoscimento erba web

AI Grass Sensor

Features
4.0 Elite RTK

  • RTK cloud-based navigation, without perimeter wire
  • Motorised blade adjustment
  • Touchscreen display
  • Handling uneven terrain thanks to the central joint

Technical datasheet

Motor type Brushless
Allowable slope (%) 45%
Maximum slope (%) 35%
Slope on outer edge or perimeter wire (%) 20%

Blade type 4-point start
Cutting width [cm] 25
Cutting height (min-max) [mm] 30-75
Cutting Height Adjustment Motorized
Spiral cutting method -
SDM" cutting method -
Pre-Set Path cutting method Yes
+ Infinity" cutting method Yes
Navigation GPS - RTK Yes
Self-levelling traction Yes
Eco mode -
Rain sensor Yes
Drop off sensor Yes
Ultrasound obstacol detection Yes
AI grass sensor Yes
Virtual Areas No limit
Lawn areas that can be managed including the main one No limit

User interface Touch display
Control APP Bluetooth-GSM
Bluetooth receiver Yes
GPS-GSM remote control (ZCS Connect) Yes
Integration with "Smart Assistant" voice assistants Yes
AMICO On request

Security PIN PIN code via APP and Geofence

Robot dimensions (lxwxh) 464x635x330 mm
Wheel profile Flex rubber
Noise level [dB(A)] 63
Protection rating IPx65
Maximum cutting surface [m²] (-20%)* 5500 m2
Lithium-Ion battery (25.9V) 10.35Ah260Wh
Quantity of batteries 1x10.35Ah
Average working time [h](+-20%) 03:45
Charging mode Automatic
Charging type Contact
Battery Chargers 8A-235W
Robot weight - incl. batteries [kg] 15,8

Standard equipment

  • Fixing nails (20 pz)
  • Charging Station
  • User Manual

Documentation & Video tutorials

Warranty

Garanzia6anni

2 years warranty with the conditions and limitations indicated in the warranty booklet plus an extension of 4 years

In order for the warranty extension to be valid, you must carry out regular winter maintenance, register the service in the manufacturer's portal, and make sure the duly completed certificates are issued and kept.
